1. Licensing procedure |
|
|
|
Application number in Regulatory Authority of Energy for the issuance of the Power Production license |
Γ – 05879 |
|
|
|
|
|
|
2. Technology |
|
|
|
R.E.S. unit: |
wind park |
|
|
Storage unit |
pumped hydro storage (PHS) |
|
|
|
|
|
|
|
||
|
Figure 1: Layout of the hybrid power plant in Astypalaia. |
||
|
|
|
|
|
3. Siting |
|
|
|
Wind park installation location: |
Hill “Castellano” Eastern Astypalaia |
|
|
PHS installation location: |
Hill “Castellano” & Cape “Trypiti” Eastern Astypalaia |
|
|
|
||
|

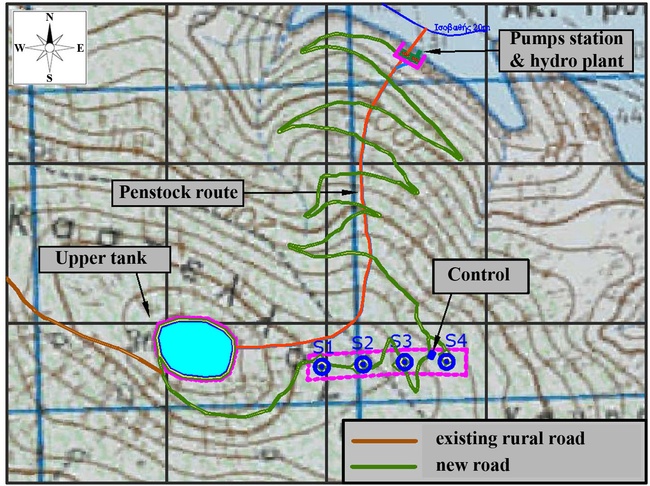

Figure 2: Siting of hybrid power plant in Astypalaia. |
||
|
|
|
|
|
|
||
|
Figure 3: 3D representation of the wind park’s siting on a wind potential map background. |
||
|
|
|
|
|
4. Dimensioning |
|
|
|
Nominal guaranteed power (MW) |
2.50 |
|
|
Wind park’s nominal power (MW) |
3.60 |
|
|
Hydro turbines nominal power (MW) |
2.738 |
|
|
Pumps nominal mechanical power (MW) |
3.368 |
|
|
Pumps nominal electrical power (MW) |
3.544 |
|
|
Hydro turbines nominal flow (m3/s) |
0.85 |
|
|
Pumps nominal flow (m3/s) |
0.77 |
|
|
Penstock structure |
double |
|
|
Minimum falling head (m) |
315 |
|
|
Maximum pumping head (m) |
360 |
|
|
Falling penstock inner diameter (m) |
1.5 |
|
|
Pumping penstock inner diameter (m) |
1.5 |
|
|
Upper reservoir total volume (m3) |
269,238 |
|
|
Upper reservoir effective capacity (m3) |
255,648 |
|
|
Minimum water volume stored in upper reservoir (m3) |
13,590 |
|
|
Total penstock length (m) |
1,485 |
|
|
Lower reservoir |
sea |
|
|
|
|
|
|
|
||
|

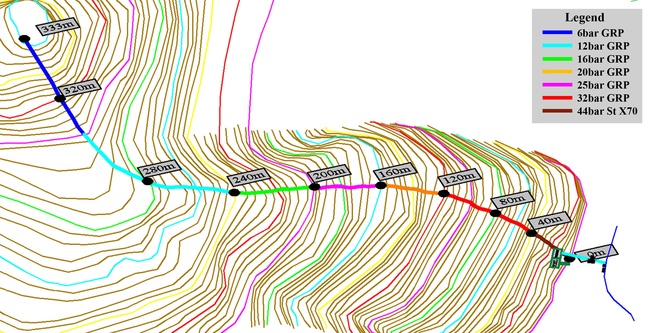

Figure 4: Penstock route representation on a 3D digitized land terrain. |
||
|
|
|
|
|
|
||
|

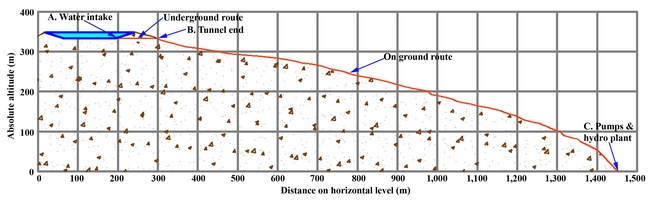

Figure 5: Vertical cross section of the penstock route. |
||
|
|
|
|
|
5. Energy – environmental results |
|
|
|
Annual cover percentage of the electricity consumption in the autonomous insular system from the hybrid power plant: |
89.28% |
|
|
CO2 emission annual reduction (tn): |
4,861 (85.73%) |
|
|
|
|
|
|
|
||
|

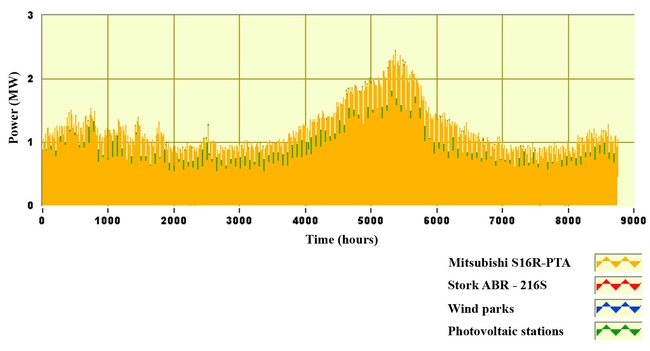

Figure 6: Annual power production synthesis before the introduction of the hybrid power plant. |
||
|
|
|
|
|
|
||
|

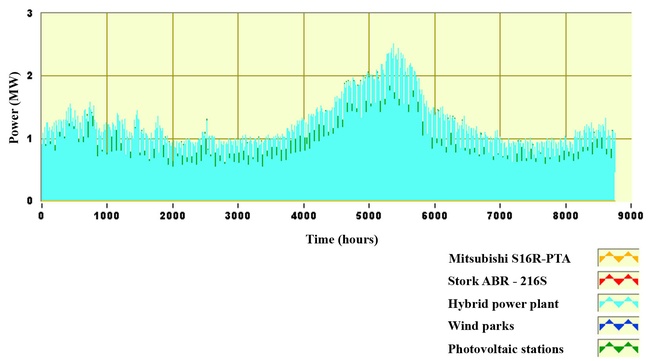

Figure 7: Annual power production synthesis after the introduction of the hybrid power plant. |
||
|
|
|
|
|
|
||
|

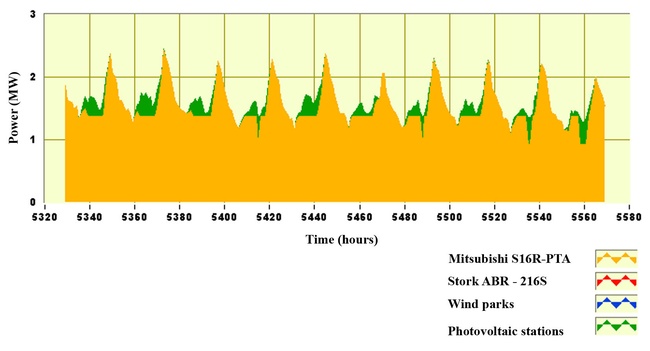

Figure 8: Power production synthesis during the annual peak power demand period (August) before the introduction of the hybrid power plant. |
||
|
|
|
|
|
|
||
|

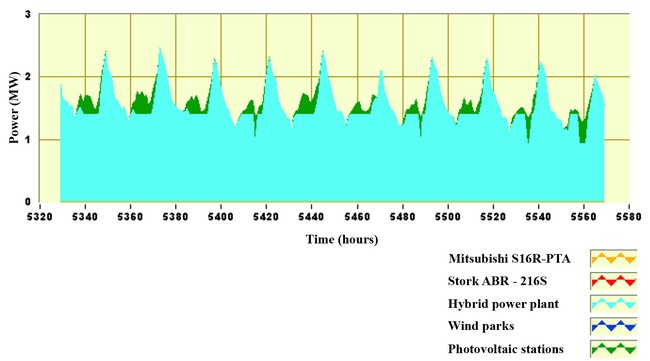

Figure 9: Power production synthesis during the annual peak power demand period (August) after the introduction of the hybrid power plant. |
||
