1. Licensing procedure |
|
|
|
Application number in Regulatory Authority of Energy for the issuance of the Power Production license |
Γ – 05012 |
|
|
|
|
|
|
2. Technology |
|
|
|
R.E.S. unit: |
wind park |
|
|
Storage unit |
pumped hydro storage (PHS) |
|
|
|
|
|
|
|
||
|
Figure 1: Layout of the hybrid power plant in Kasos. |
||
|
|
|
|
|
3. Siting |
|
|
|
Wind park installation location: |
Hill “Megalos Prionas” Eastern Kasos |
|
|
PHS installation location: |
Hill “Kapsalos” & Coast “Antiperatos” Central and Northern Kasos |
|
|
|
||
|
|
||
|

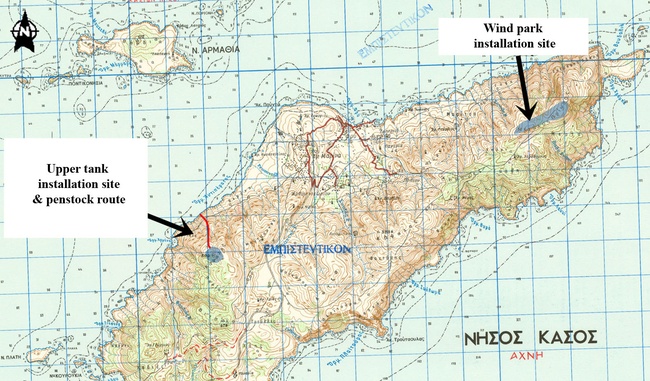

Figure 2: Siting of hybrid power plant in Kasos. |
||
|
|
|
|
|
|
||
|

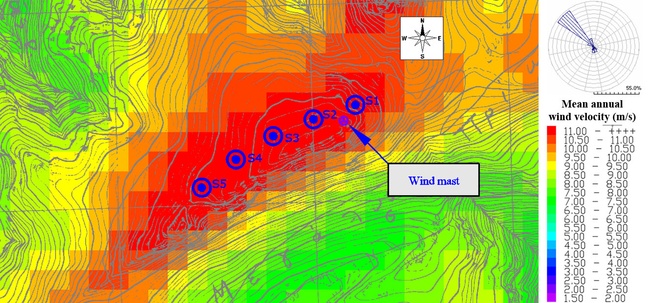

Figure 3: Representation of the wind park’s siting on a wind potential map background. |
||
|
|
|
|
|
|
||
|
Figure 4: Siting of the pumped hydro storage system. |
||
|
|
|
|
|
4. Dimensioning |
|
|
|
Nominal guaranteed power (MW) |
4.0 |
|
|
Wind park’s nominal power (MW) |
4.5 |
|
|
Hydro turbines nominal power (MW) |
4.0 |
|
|
Pumps nominal mechanical power (MW) |
4.2 |
|
|
Pumps nominal electrical power (MW) |
4.5 |
|
|
Hydro turbines nominal flow (m3/s) |
1.04 |
|
|
Pumps nominal flow (m3/s) |
0.60 |
|
|
Penstock structure |
double penstock |
|
|
Minimum falling head (m) |
452 |
|
|
Maximum pumping head (m) |
493 |
|
|
Falling penstock inner diameter (m) |
1.0 |
|
|
Pumping penstock inner diameter (m) |
1.0 |
|
|
Upper reservoir total volume (m3) |
483,313 |
|
|
Upper reservoir effective capacity (m3) |
465,062 |
|
|
Minimum water volume stored in upper reservoir (m3) |
57,058 |
|
|
Total penstock length (m) |
1,450 |
|
|
Lower reservoir |
sea |
|
|
|
|
|
|
|
||
|
Figure 5: Penstock route representation on a 3D digitized land terrain. |
||
|
|
|
|
|
|
||
|

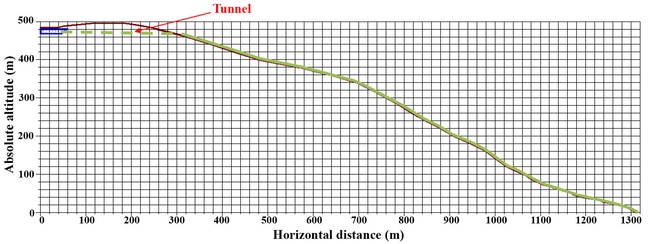

Figure 6: Vertical cross section of the penstock route. |
||
|
|
|
|
|
5. Energy – environmental results |
|
|
|
Annual cover percentage of the electricity consumption in the autonomous insular system from the hybrid power plant: |
27.95% |
|
|
CO2 emission annual reduction (tn): |
7,972 (31.00%) |
|
|
|
|
|
|
|
||
|

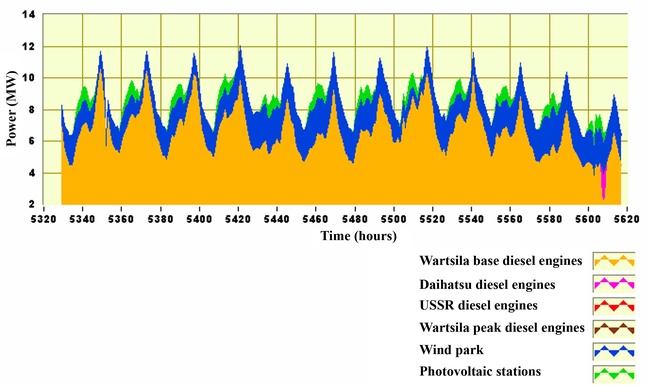

Figure 7: Power production synthesis during the annual peak power demand period (August) before the introduction of the hybrid power plant. |
||
|
|
|
|
|
|
||
|

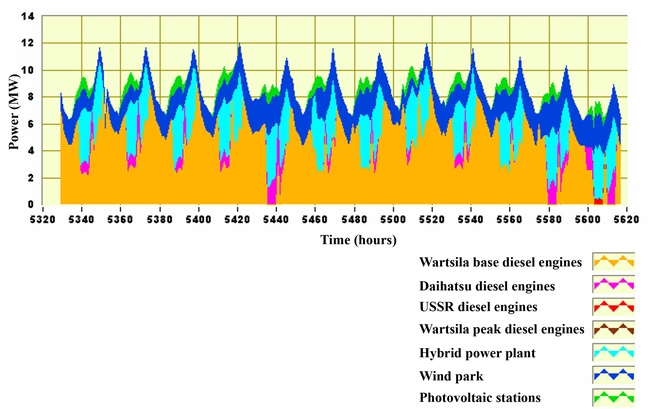

Figure 8: Power production synthesis during the annual peak power demand period (August) after the introduction of the hybrid power plant. |
||
